Description

OFF COIL WIRE STRAIGHTENERS

COIL ∅5 – ∅25 mm

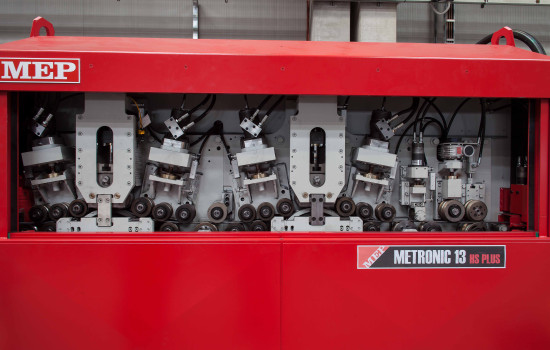

METRONIC HS HYBRIDs represent the highest technological development in the field of automatic off-coil straightening machines.

These machines make it possible to obtain straight bars cut to length with a maximum length of 21 meters (*), distinguished by:

• High speed: up to 9 m/s for METRONIC HS Plus, guaranteeing fast and efficient production.

• Ease of use and robustness: features that make them intuitive and reliable over time.

• Versatility: adaptable to a wide variety of production needs with different configurations and options.

Flexibility for every production necessity:

METRONIC HS HYBRIDs work wire in coils with diameters from 6 to 20 mm, adapting to series production (same diameter with two wires up to 13 mm) and single wire production (single wire up to 20 mm).

Optimized productivity:

• Customized configurations: plants can be configured and customized to meet specific production needs.

• Automatic work cycle management: option to optimize production flows based on unit availability.

• Active process control: the METRONIC HS HYBRIDs control each individual position (tag) to determine operational priorities and ensure an efficient process.

Manual work eliminated:

• State-of-the-art drive and control system: ensures unparalleled levels of productivity.

• Optimized and continuous work cycle: eliminates manual operations that slow down production.

Quick and automatic wire-change:

• Exclusive METRONIC HS HYBRID multi-wire pre-feeder: performs wire-change in a very fast time.

• AFS straightening system: automatically reconfigures according to the diameter of the wire to be processed.

• Minimizing scrap: by full utilization of each coil.

• Elimination of downtime: for extracting and rejecting the ends of coils.

METRONIC HS HYBRID: the ideal solution for automatic straightening from coil.

With their unique capabilities, METRONIC HS HYBRIDs provide maximum productivity, flexibility and safety, representing a valuable investment for wire processing companies.

(*) Note: The maximum length of 21 meters may be subject to change depending on the specific model and characteristics of the material to be processed.
